Interpretation of ABB Robot Virtual Simulation Technology

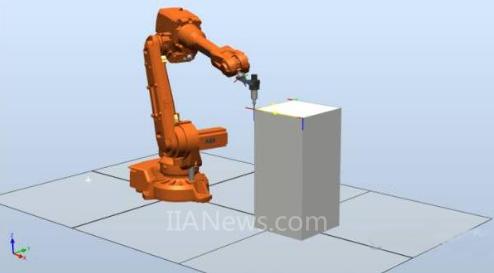

The market competition pressure of industrial automation is increasing, and customers demand higher efficiency in production to lower prices and improve quality. It is not feasible to have the machine still programmed to start testing or commissioning at the beginning of a new product, because it means stopping existing production to program new or modified parts. ABB's RobotStudio is built on ABB VirtualController, which we can use to easily simulate the on-site production process in a computer, allowing customers to understand the development and organization of the production process.
Robotstudio features:
1.CAD import
RobotStudio can easily import data from a variety of mainstream CAD formats, including IGES, STEP, VRML, VDAFS, ACIS and CATIA. Robot programmers can develop higher-precision robot programs based on these precise data to improve product quality.
2. Automatic path generation
One of the most time-saving features in RobotStudio. This function automatically generates the robot position (path) required to track the machining curve in just a few minutes by using the CAD model of the part to be machined, which used to take hours or even days.

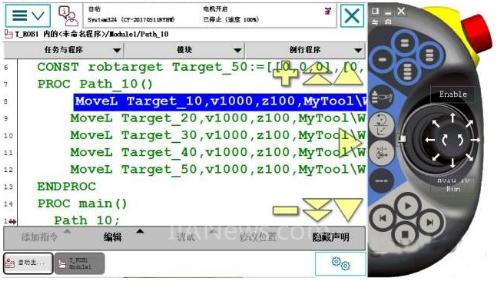

3. Program editor
The ProgramMaker can generate robot programs that enable users to develop or maintain robot programs offline in a Windows environment, significantly reducing programming time and improving program structure.
4. Path optimization
The simulation monitor is a visual tool for robot motion optimization, and the red line shows improvements that allow the robot to operate in the most efficient manner.
5. Automatic analysis of stretching ability

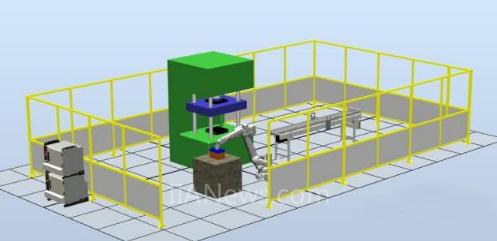

This function allows the user to move the robot or workpiece arbitrarily until all positions are available, and the work unit floor plan verification and optimization can be completed in a few minutes.
6. Collision detection
Collision detection prevents serious damage from equipment collisions. Once the test object is selected, RobotStudio automatically monitors and displays whether these objects collide when the program is executed.
7. Online work
Use RobotStudio to communicate with real robots for convenient monitoring, program modification, parameter setting, file transfer and backup and recovery operations.
